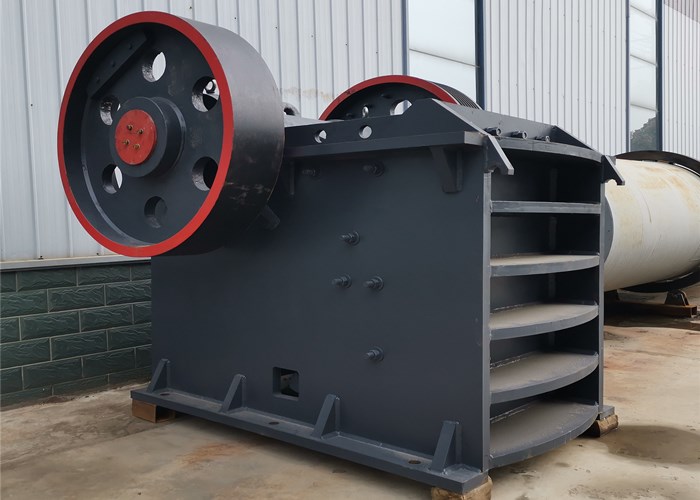

Granite Limestone Pebble River 200T/H Small Gravel Crusher

Name: Granite Limestone Pebble River 200TH Small Gravel Crusher
Brand: Mind
Price: 1 USD

Buy cheap Granite Limestone Pebble River 200T/H Small Gravel Crusher product

Brand Name : Mind

Certification : CE ISO 9001

Place of Origin : Henan, China

MOQ : One Unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Sets per Month

Delivery Time : 7-20 Working Days

Packaging Details : Standard Export box

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service

Application : Mining,Stone Industrial,Quarry,Sandstone,construction

Use : Marble,Solid Surface,Granite,construction material,stone

Voltage : 380V/50Hz

Type : Jaw Crusher,Mobile Crusher,Stone Cutting Machine

Name : stone product line,Granite Cutting Machine,Jaw Crusher

Installation : under engineer's guide,Under our technician's guide,Foundation Drawing

Contact Now

100-200 t/h Sand Making Machine Gravel Crusher Equipment For Granite Limestone Pebble River Stone Crushing Plant

Product Descriptions of Jaw Crusher:

Jaw crusher referred to as jaw, also known as jaw crusher, jaw crusher, there are simple pendulum jaw crusher and pendulum jaw crusher, mainly used for crushing compressive strength of not more than 320 mpa of various materials.Red star machine combined with domestic and foreign advanced technology research and development of jaw crusher, the use of deep cavity crushing, feeding and crushing efficiency is greatly improved, single machine energy saving 15%-30%, the system energy saving more than double, with advanced technology, long service life, reliable work, easy maintenance and other advantages

Technical Parameters of Stone Crushing Plant:

Model	Inlet Size(mm)	Feed size(mm)	Adjustable Range	Capacity (t/h)	Speed (r/min)	Power (kw)	Weight (t)
PE-150*250	150*250	125	10-40	0.6--3	300	5.5	0.81
PE-250*400	250*400	210	20-60	3--13	300	15	2.8
PE-400*600	400*600	340	40-100	10--34	275	30	6.5
PE-500*750	500*750	425	50-100	20--52	275	55	10.3
PE-600*750	600*750	500	150-200	50--100	275	55	12
PE-600*900	600*900	500	65-160	30--75	250	55-75	15.5
PE-750*1060	750*1060	630	80-140	72--130	250	110	28
PE-800*1060	800*1060	640	100-200	85--143	250	110	30
PE-900*1060	900*1060	685	230-290	100--250	250	110	31
PE-900*1200	900*1200	750	95-165	87--164	200	110	50
PE-1000*1200	1000*1200	850	195-265	197--214	200	110	51
PE-1200*1500	1200*1500	1020	150-300	250--500	180	160	100.9
PEX-150*750	150*750	120	18-48	5--16	320	15	3.5
PEX-250*750	250*750	210	25-60	8--22	330	22	4.9
PEX-250*1000	250*1000	210	25-60	10--32	330	30-37	6.5
PEX-250*1200	250*1200	210	25-60	13--38	330	37	7.7

Features of Gravel Crusher Equipment:

1. The machine frame is of reinforced welded structure, bearing block is of integral cast steel structure, eccentric shaft is made of high-strength forging parts, and the finite element software analysis and optimization make the equipment have higher impact resistance, low failure rate and high reliability;
2. Symmetrical ""V"" type crushing cavity design, large stroke and reasonable speed matching make crushing ratio bigger, capacity higher, and output particle size more uniform;
3. Large size bearings are used for higher carrying capacity. At the same time, the bearing chamber adopts effective labyrinth sealing method to greatly extend the service life of bearing;
4. Wedge adjustment device is adopted in the adjustment of discharge mouth, which makes the adjustment operation much easier, safer and faster.

Granite Limestone Pebble River 200T/H Small Gravel Crusher

Applications of Sand Making Machine:

Granite Limestone Pebble River 200T/H Small Gravel Crusher
