Assembled Q235 Steel Bulk 25m3 Cement Storage Silo

30 T Assembled Steel Bulk Cement Storage Silos

Technical Parameters of Cement Storage Silo:

Working Principles of Storage silos:

• After the storage bin is fixed, the cement is transported by the bulk cement truck to the construction site, and then the conveying pipeline of the bulk cement truck is connected with the feeding pipeline of the cement silo (cement tank), and the gas pressure of the bulk cement truck will be The cement in the tank is transported into the cement silo (cement tank).
• In the process of transporting cement into the storage bin, the operator should uninterruptedly press the button of the vibration motor of the precipitator to shake off the cement attached to the bag of the dust collector to prevent the bag from being blocked and the warehouse to be exploded.
• Through the high and low material level can be observed the warehouse full and lack of material.
• When it is necessary to release the cement, first open the manual discharge valve at the bottom of the cone and then transport the cement through the cement conveyor. In the process of discharging, if the phenomenon of “arching” occurs, press the button of the electromagnetic valve of the arching device in time to blow the air, eliminate the “arching” and feed, and ensure the smooth supply of cement.

Advantages of Assembled Silo:

• With different capacities:50T,100T,150T,200T,etc.
• Customized sizing and layout to specific requirement
• Sub-structure, easy transportation, installation fast, level display, with positive and negative regulator,Green filter
• Put in bulk powder (cement or fly ash), waterproof and moisture, easy to use and reduce costs , the top of cement silo with green filter, used to reduce dust leakage.
• Equipped with a safety valve at the top of cement silo, cement silo used to balance the pressure difference between inside and outside. Upper and lower parts of the cement silo is equipped with display materials, can monitor the number of cement materials warehouse. With gas in the lower part of broken cement storage devices, to ensure smooth unloading.
• Cement bin is cylinder and supporting structure. The superior part has dust removing device to avoid leakage of dust; and the inferior part is equipped with arch breaker to avoid powder caking and make discharging smooth, and bin level sensing device to master usage of material in the bin at any time.
• Cement bin generally adopts bulk cement conveying truck to send powder in the bin by pneumatic conveying; according different structures of cement bin, there are two kinds of discharging: the first is the inferior part is connected with screw conveyer and screw conveyer send powders into powder measure; the second is to adopt pneumatic conveying (to special cement bin).

25m3 Cement Storage Silo

Q235 Steel Cement Storage Silo

25m3 portable cement silos

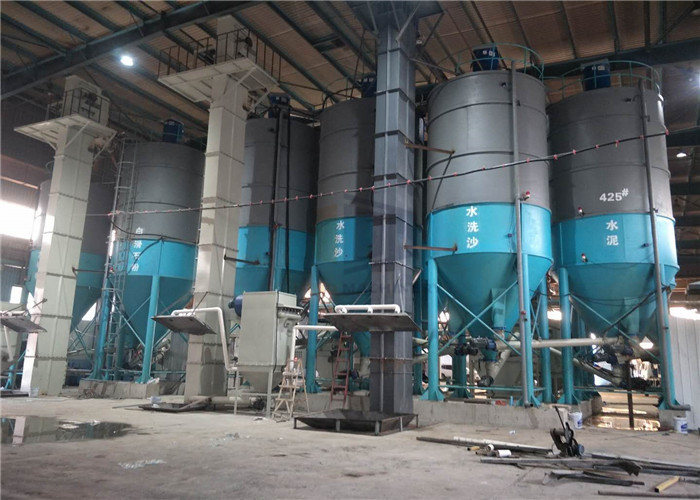

Assembled Q235 Steel Bulk 25m3 Cement Storage Silo Images
