Dry Cement Based Insulation Mortar Mix Plant Construction Mixture Mortar Station
1. Product Descriptions of Dry Mix Mortar Plant:
1. Full automatic dry mortar production line includes ready-mixed mortar equipment, building mortar equipment, tandem mortar equipment, station type mortar equipment.
2. Including the storage of raw materials, drying, grading, metering, mixing, packing and bulk mechanical.
3. It controls full automatic operation by computer, Depending on the configuration, capacity at 10-35T/H, with an annual output of 30-100,000 tons per year.
4. Occupation area: 60-100m² , Height: 8-13 m, Worker required: 3-5 person
2. The basic configuration of 10-15T/H automatic Insulation Mortar plant:
| Name | Model | Power(kw) | Qty. |
| Raw Material Storage System | 60T Detachable Silo | -- | 3units |
| Mixing System | Twin Shaft Paddle Mixer DWZ-2000 | 18.5kw | 1unit |
| Pre-Mix Hopper 2m2 | -- | 1unit |
| End Product Hopper 2m2 | 5.5kw | 1unit |
| Conveying System | Screw Conveyor LSY219 | 7.5kw | 3units |
| Indoor Bucket Elevator TD38/25 | 4kw | 1unit |
| Chain Hoist NE15 | 4kw | 1unit |
| Batching System | Batching Hopper 2m2 | 5.5kw | 1unit |
| Packing System | Valve Packing Machine | 3kw | 1unit |
| Control System | PLC Control & Cabinet | | 1unit |
| Dedust System | Pulse Dust Collector DMC15 | 3kw | 1unit |
| Bag Dust Collector for Packing Machine | 3kw | 1unit |
| Air Supply System | Air Compressor V-0.6/8 | 5.5kw | 1unit |
| Steel Structure | Layer -2 Steel Platform | | 1unit |
3. Applications Areas of Construction Mixture Mortar Station:
| Bonding mortar: | Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc. |
| Decoration mortar: | Decorative plaster, inner and outer wall putty, colorful decoration mortar etc. |
| Protection mortar: | Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc. |
4. Main structure:

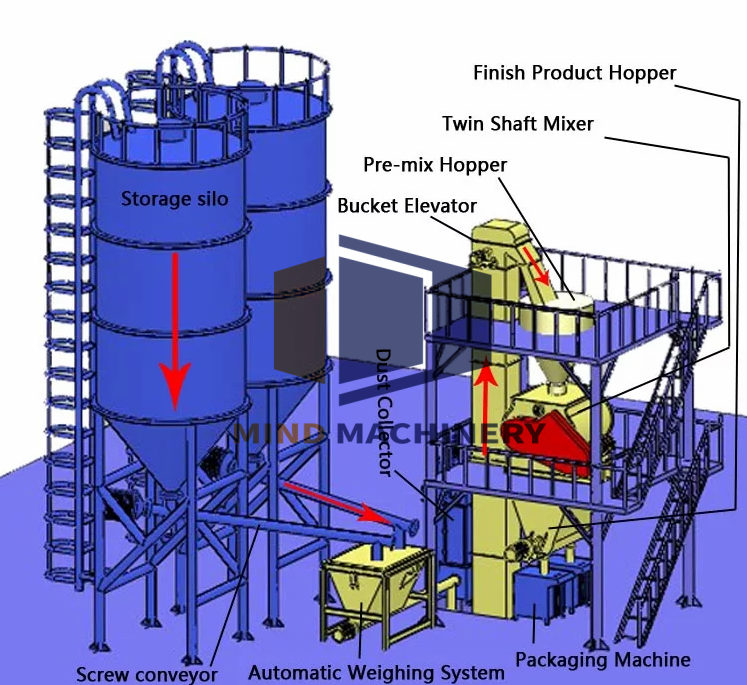

Automatic dry mix mortar plant is consist of storage bin, double shaft paddle mixer, outdoor bucket elevator, pre-mix hopper, additive hopper, end product hopper, packing machine, indoor bucket elevator, pulse dust collector, automatic batching machine, steel frame, etc.The storage bin is used to storage raw material, such as: cement, fly ash, sand and other material, its capacity is 60 m³and the quantity is 3 in general.
5. FAQ
1. What's the difference between full automatic dry mortar mixing equipment and Semi-automatic dry mortar mixing equipment?
A: (1)Semi-automatic dry mortar mixing equipment is cheaper than full automatic dry mortar mixing equipment.
(2) Semi-automatic dry mortar mixing equipment do not need to equip silos while full automatic dry mortar mixing equipment equip material silos.
(3) Semi-automatic dry mortar mixing equipment is manual feeding and automatic weighing and packaging, Full automatic dry mortar mixing equipment is automatic feeding and automatic weighing and packaging.
2. How many person required to operate this dry mortar mixing equipment?
A: Usually 2-4 workers are enogh to operate this dry mortar mixing equipment.
3. What equipment and services you can provide?
A: We can provide you turnkey solution of dry mortar mixing equipment from working site planning to dry mortar machines, transportation, installation and training, formula of dry mortars, after-sales services, life time technical support etc.
